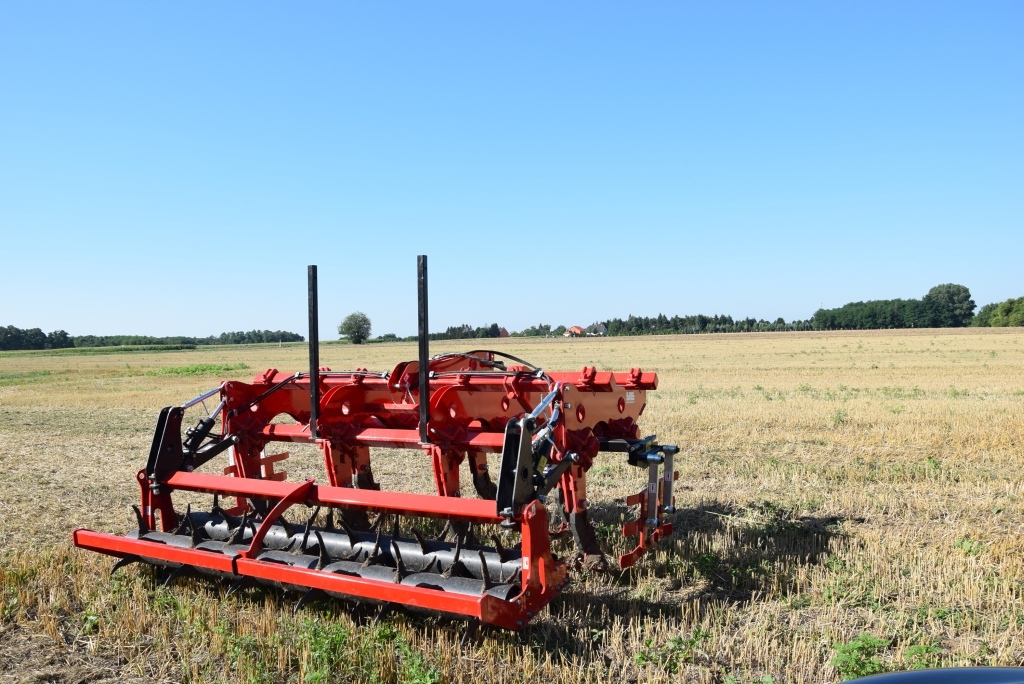

Chisel Subsoiler Talon Max

TALON MAX is a chisel plough for deep soil cultivation which is suitable especially for post-harvest activities. Thanks to its high ground clearance, it can cultivate stubble fields with a high share of plant residues. It can be essentially used as a cheaper and more productive alternative to ploughing. Working deepness up to 65 cm allows considerable soil aeration and break through the impermeable layer. It is beneficial for root system of crops. The machine can be also used for soil loosening at headlands compacted by heavy agricultural machinery.

  • Soil aeration
  • Break through impermeable layer
  • Improve rainwater absorption
  • Recovery of water capillarity

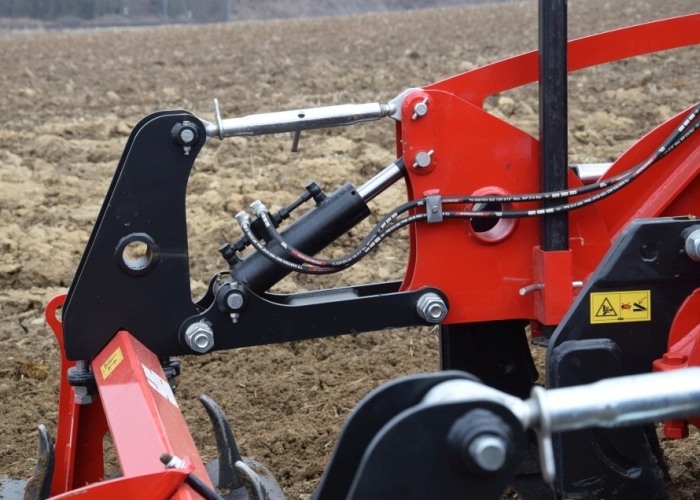

The machine can be fitted with two supporting rollers which perfectly crumble, flatten and prepare the soil for further processing. However, it can easily work without them or only with one roller. Working units can be protected mechanically using shear bolts for lighter soils or with hydropneumatics control system for heavy soils or soils with a high share of stones. In case of crash into an obstacle the tine can tilt aside and subsequently returns back to the original position.

  • Working depth up to 65 cm
  • Heavy construction of machine
  • Convenient chisel angle causes lower translational resistance and lower tractor consumption
  • Able to work even in wet conditions
  • Self-cleaning double roller with forged spikes for high crushing effect
  • Working speed up to 12 km/h

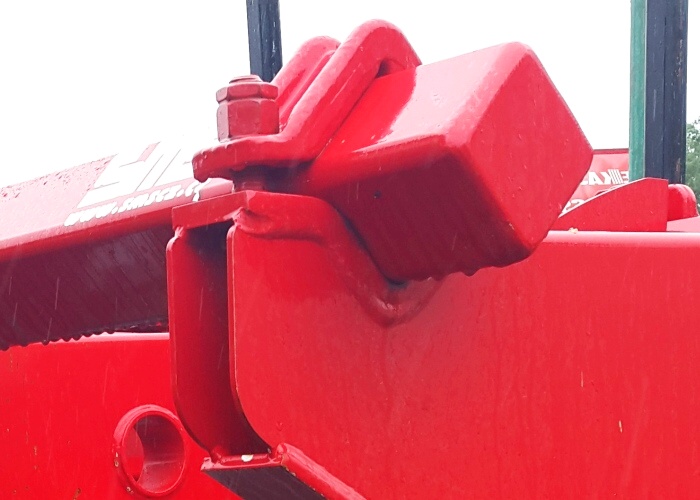

Robust frame made from high strength steel profiles 100x100x10 mm
Robust frame made from high strength steel profiles 100x100x10 mm
Double side chisel with quick change system
Double side chisel with quick change system

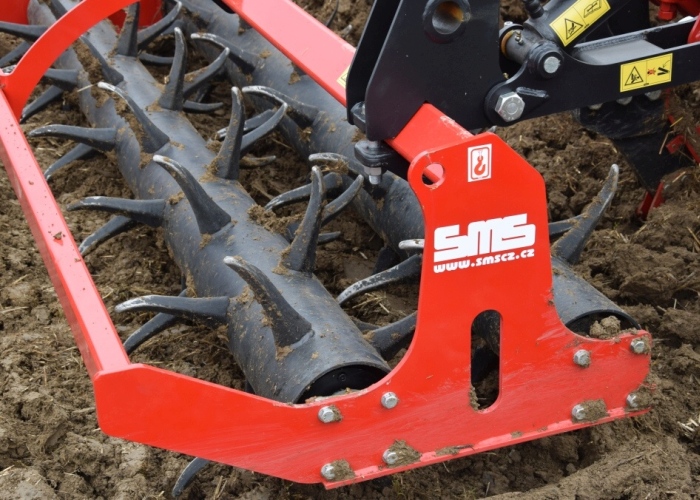

Double spiky roller (diameter 220 mm) with perfect crushing and leveling effect
Double spiky roller (diameter 220 mm) with perfect crushing and leveling effect

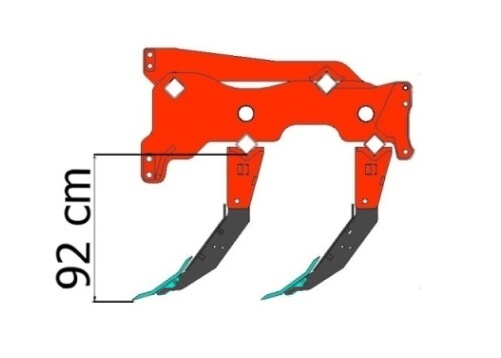

High material throughput thanks the hight frame clearance
High material throughput thanks the hight frame clearance
Simple, user-friendly setting and reliable work of the machine
Simple, user-friendly setting and reliable work of the machine

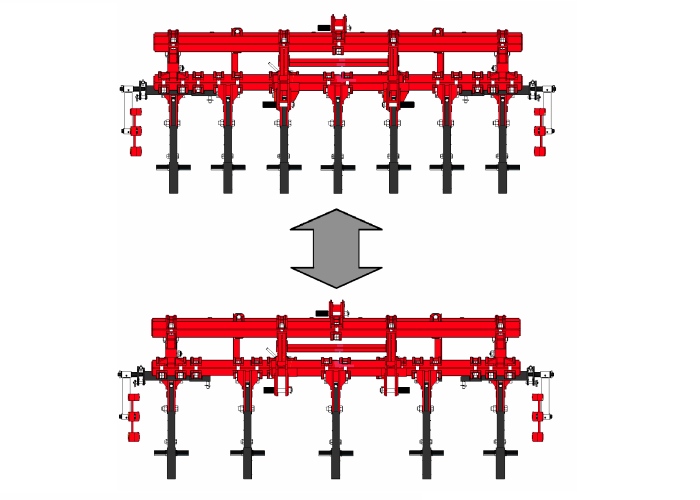

Machine design allows to change the number of tines and distance between them
Machine design allows to change the number of tines and distance between them

Version H- hydraulic folded, carried, three-part frame

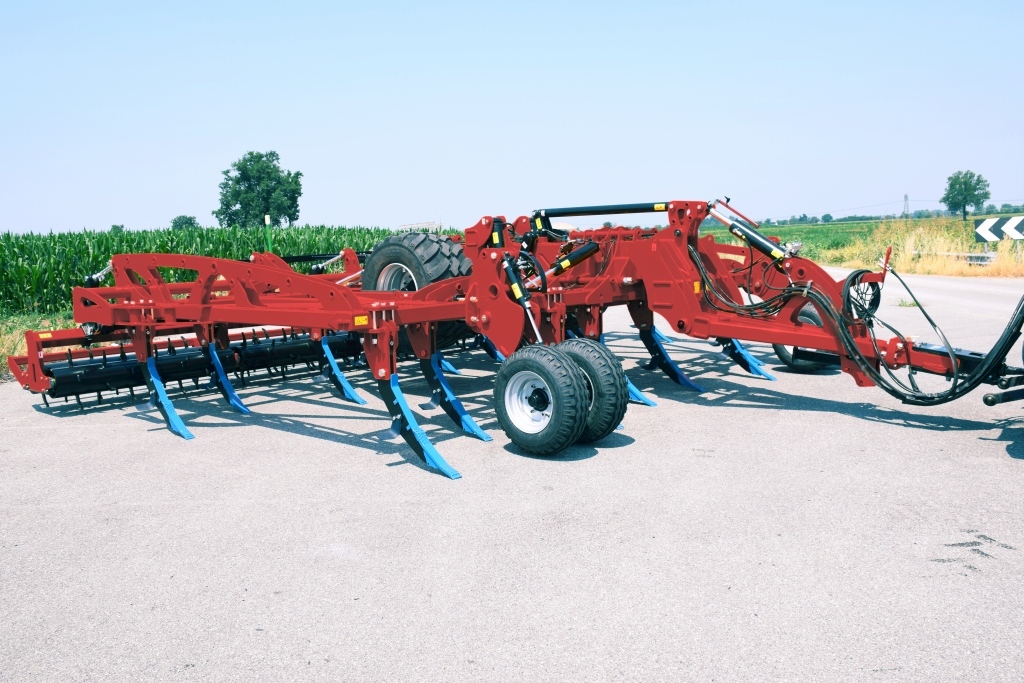

Version P- hydraulic folded, semi-carried, two-part frame

* Weight of machine with securing of shear bolt and double talon roller

Version

250/5

300/5

300/7

400/9

400/9 H

500/13 P

600/15 P

700/17 P

No of tines

5

5

7

9

9

13

15

17

Working width (cm)

250

300

300

400

400

530

620

720

Transport width (mm)

1990

2990

2990

4000

2990

3000

3000

3000

Working depth (cm)

65

65

65

65

65

65

65

65

Min. power output (kW)

140

150

170

200

210

300

380

460

Weight * (kg)

1950

2020

2180

2920

3370

9100

10200

11800

Working speed (km/h)

6-12

6-12

6-12

6-12

6-12

6-12

6-12

6-12

Other options

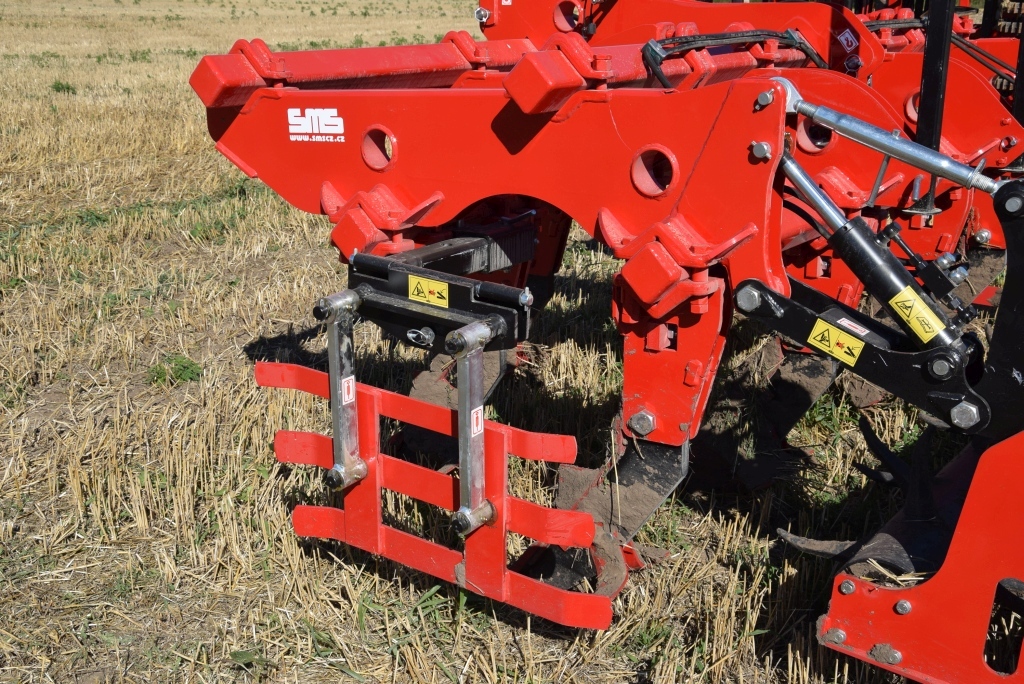

Side shields
Propular wheels
Seeding/ Fertilizing unit
Long-life chisels
Side additional rollers
