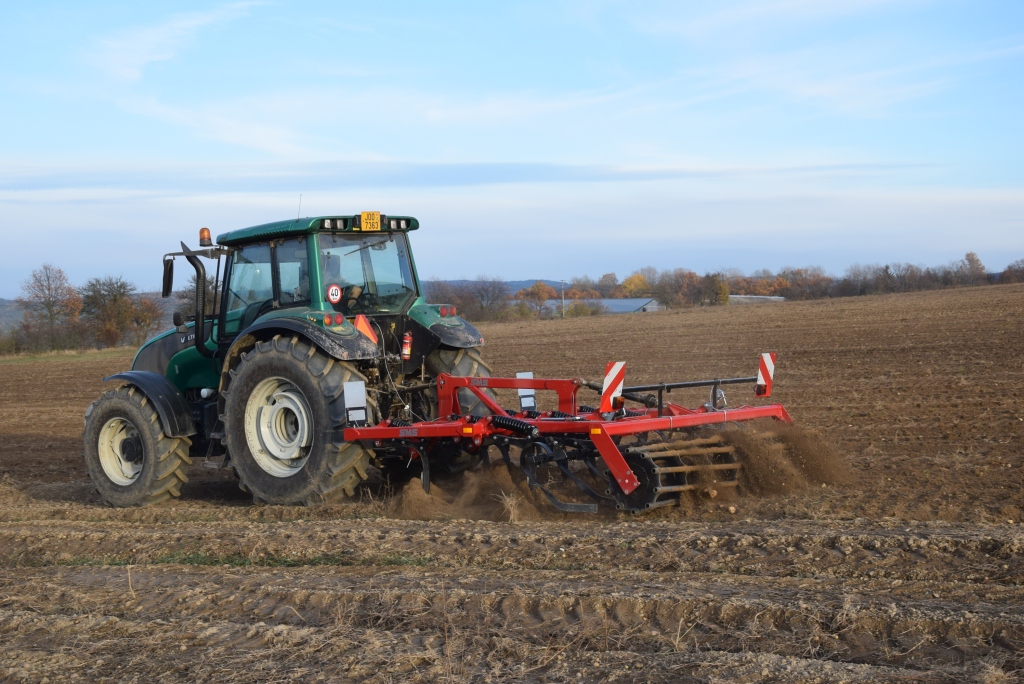

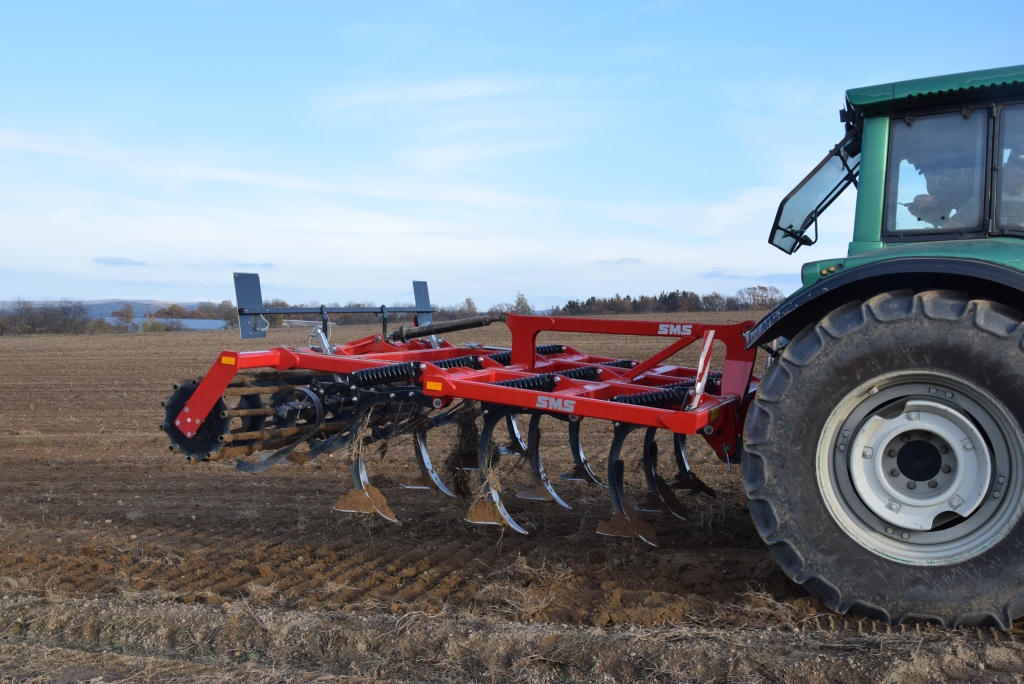

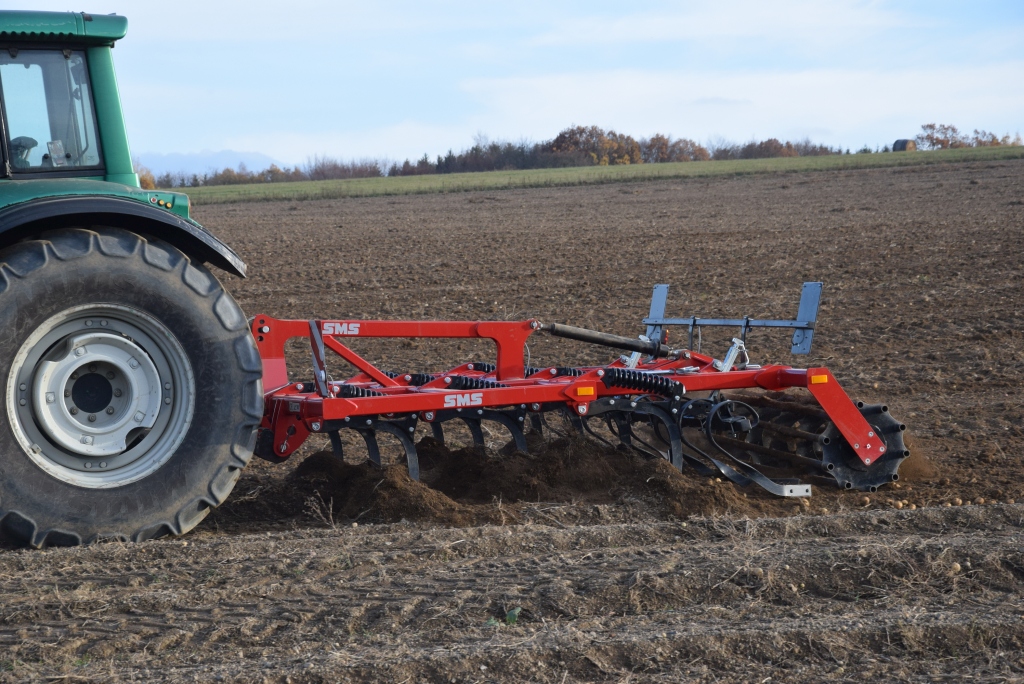

Cultivator Atos
Atos is a versatile machine that can be used for pre-sowing preparation as well as post-harvest soil cultivation in minimization technologies. With application of wide winged shares cultivator can process soil at depth of 5-20 cm. Maximal depth is up to 30 cm when using chisels without wings.
- 3 rows of tines
- Tine distance 30 cm
- Working depth up to 30 cm
Advantages:
- Robust and quality designed frame construction from steel profiles 100x100x8 and 120x100x8 mm.
- Easy maintenance thanks of low number of points for lubrication and fine components from top-class suppliers
- Easy control and machine setting
- Option to choose from 4 different types of tines, wide range of accessories and rollers for all conditions
- Option to choose tough and maintenance-free tines S40 with ability to waggle to three directions.
Standard variant is equipped with firm or hydraulically folded frame fitted with three rows of arrow shares, levelling springs and a crumbling roller. It can be eventually replaced with other types of roller based on soil condition. Operating depth varies depending on share type. Cultivator ATOS can be fitted with two types of tines secured with shear bolts or two types of tines with springy protection. The flexible protection is recommended especially for heavier and rocky soils.
Standard modification
- 3 rows of tines with distance 30 cm mounted by shares or chisels
- Levelling section – continuously adjustable height and working angle
- Height adjustable crumbling roller
Machine construction:
Atos 300- 360- carried, one-part frame
Atos 440 N- carried, hydraulic folded, two-part frame
Atos 440 - 500 - semi-carried, hydraulic folded, two-part frame
Model | 300 | 360 | 440 N | 440 | 500 |
|---|---|---|---|---|---|
Min. power output (kW) | 80 | 120 | 130 | 120 | 130 |
No. of tines | 10 | 12 | 14 | 14 | 16 |
Tine distance (cm) | 29 | 29 | 31,5 | 31,5 | 31,5 |
Max. working depth (cm) | 30 | 30 | 30 | 30 | 30 |
Transport width (mm) | 2980 | 3950 | 2980 | 2980 | 2980 |
Working width (cm) | 300 | 360 | 440 | 440 | 500 |
Tire size | - | - | - | 400/60-15,5 | 400/60-15,5 |
Weight * (kg) | 1180 | 1400 | 2200 | 3020 | 3500 |
Linkage category | III/2 | III/2 | III/2 | lll | III |
Working speed (km/h) | 7-12 | 7-12 | 7-12 | 7-12 | 7-12 |
Transport speed (km/h) | 20 | 20 | 20 | 20 | 20 |
