TALON GREEN

NEW 2023

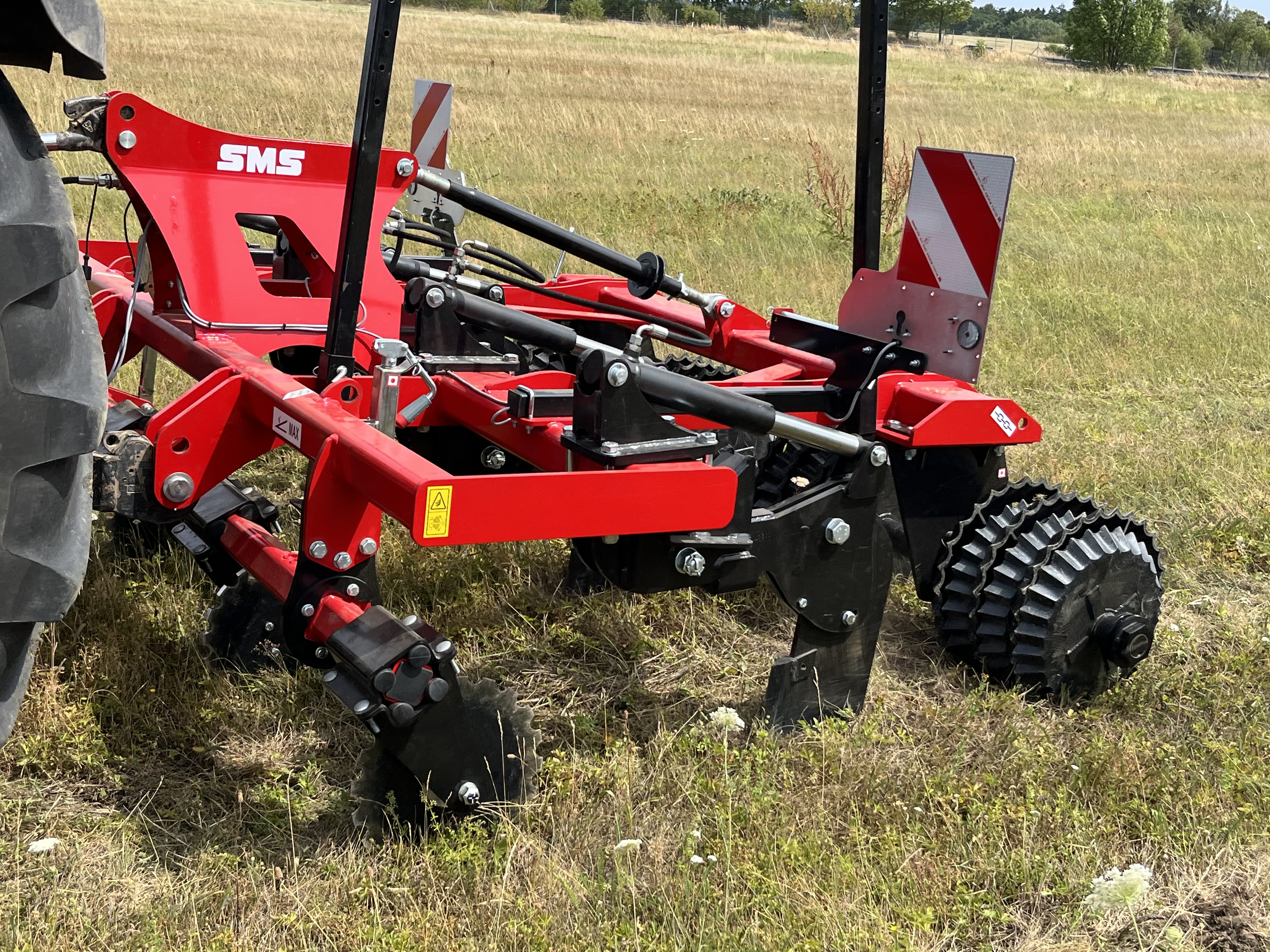

The TALON GREEN subsoiler is designed for deep cultivation and aeration of permanent grassland without disturbing the vegetation and without mixing the soil structure and pulling stones to the surface.

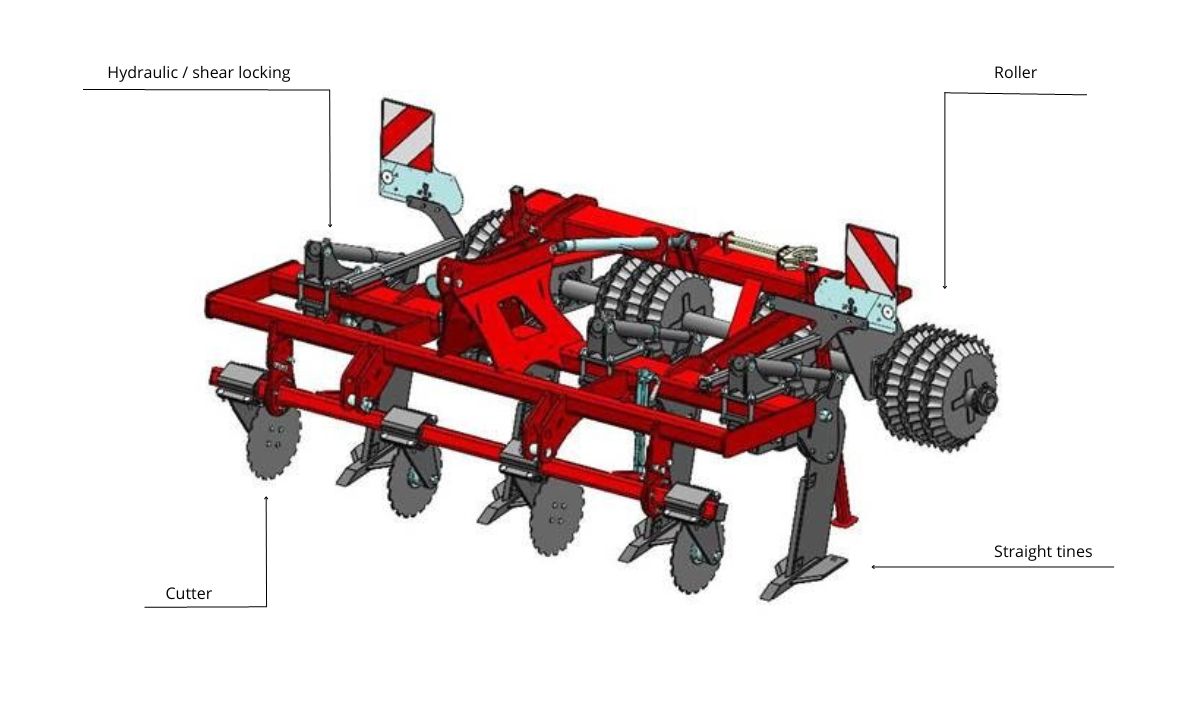

The mechanically adjustable cutter cuts the top layer of the crop, opening the surface for smooth passage of the husk, thus avoiding tearing or damage. The support roller then stiffens everything.

The cutter, fitted with a maintenance-free bearing, is attached to the machine frame by rubber silent blocks that absorb vibrations from uneven ground. This prevents the frame from being forcefully overloaded.

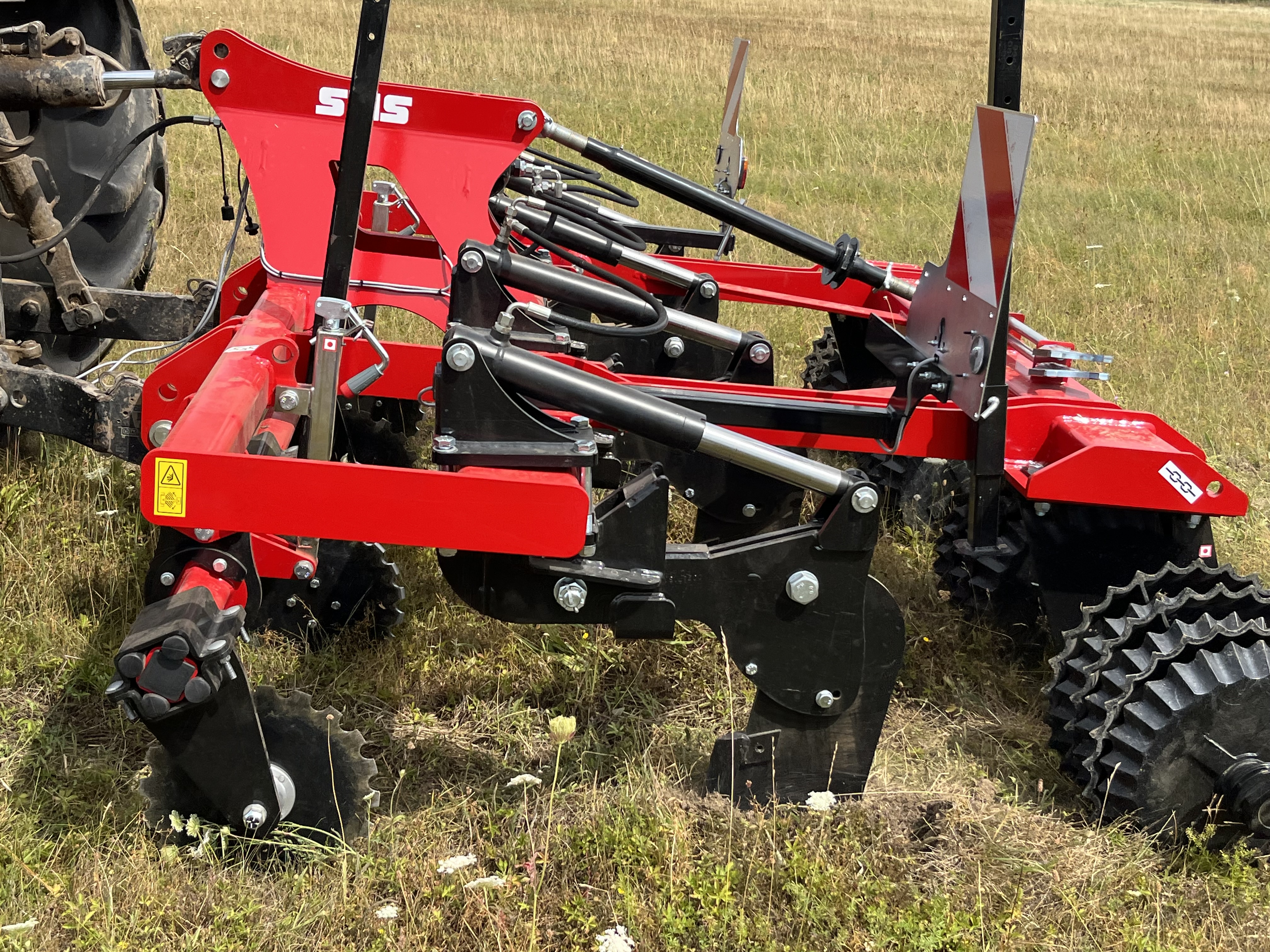

The attachment of the tiness to the machine frame is by means of strength bolts and pressure plates to the frame. This ensures that the position of the tine can be changed according to the farmer's needs. Tines and roller are laterally adjustable and are secured by a shear bolt, or hydraulic locking can be used for heavier or rocky terrain.

The machine can be equipped with a tubular roller or a Z roller for an aggressive grass cultivation effect. In addition, the Z roller is available in the full working width of the machine or in smaller sections/shots located behind the tines.



Pros of Talon Green:

  • Aeration of permanent grass areas up to 35 cm deep
  • Disturbance of the subsoil
  • Loosening without tearing or damaging the crop
  • Improving and restoring water infiltration
  • Promoting emergence
  • Improving conditions for plant growth with a deep root system



Function and another advantages:

  • Easy peel change
  • Robust frame made of high-strength materials
  • Working with the machine at speeds of 5-8 km/h


Soil aeration up to 35 cm without mixing

​


Aeration of permanent grassland without disturbing the surface



300/3

300/4

No of tines

3

4

Working width (cm)

300

300

Transport width (mm)

300

300

Working depth (cm)

35

35

Min. power output (kW)

100

120

Working speed (km/h)

5-8

5-8

Hitch

cat. 3

cat. 3

Type of tines

Straight tines

Roller

Tubular roller
Z roller

⌀ 500 or 550 mm

in the width of the whole machine 300 cm, or segmented with placement behind the tines

Other

Hydraulic locking of tines
