Disc cultivator Ontario

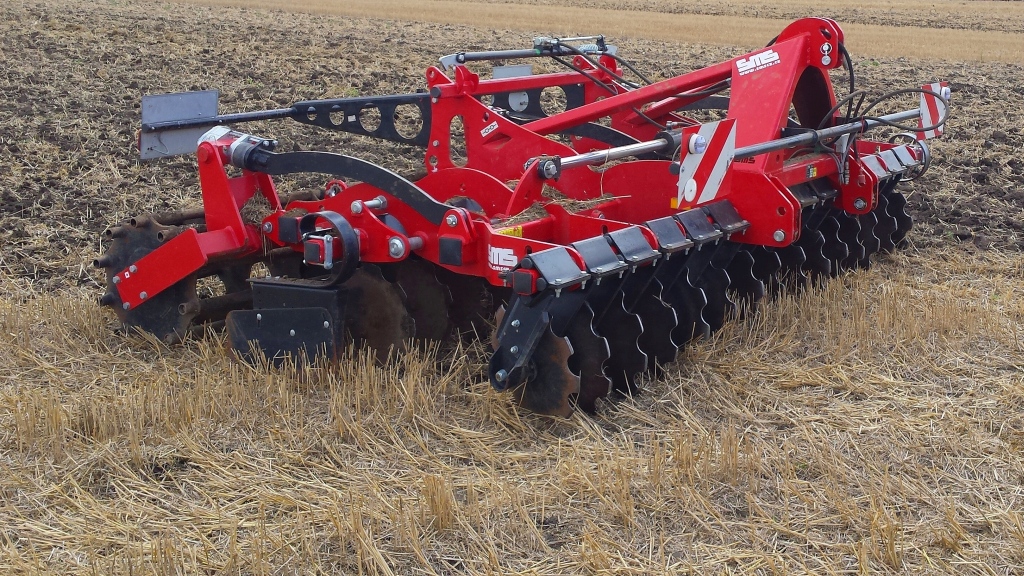

Short disc cultivator is equipped with two rows of discs mounted on high-strength steel tines with maintenance-free bearings. Each disc is protected against overloading by rubber silentblocks – simple and reliable system. Working depth of the cultivator is up to 12 cm which makes the machine suitable for the first stubble cultivation after harvest, pre-sowing soil preparation or grassland revitalization.

A wide range of machine variations and supplementary accessories helps to configure machine for all kinds of customers – from small family farms to large scale companies with emphases on extensive daily performance. The top model "S" is equipped with springy crossboard behind the second disc row which flattens the ground of field during pre-sowing works perfectly.

  • Disc diameter 51 cm
  • Disc distance 125 mm
  • Working depth up to 12 cm

+ Robust and quality designed frame construction

+ Easy control and machine setting

+ Continuous transverse adjustment of second disc row

+ Wide range of rollers for all conditions and other accessories

+ The finest components from top-class suppliers

+ Easy maintenance due to minimum points for lubrication

Height adjusting of side disc.
Height adjusting of side disc.
Side boards for flat field without the side ridges.
Side boards for flat field without the side ridges.
Easy and quick adjustment of working depth by washers.
Easy and quick adjustment of working depth by washers.

Machine construction:

Version 200-400  - rigid, carried, one-part frame
Version 400 H- 500 H - hydraulic folded, carried, three-part frame
Version 500 - 600 - hydraulic folded, semi-carried, two-part frame



Standard tractor linkage:

Version 200-400  - three-point linkage of category III/2
Version 400 H- 500 H - three-point linkage of category III/2
Version 500 - 600 - hitch of category III (available with III/2 or IV)



* Weight of machine with tubular roller.

200

250

300

350

400

400 H

450 H

500 H

500

600

No. of discs

14

18

22

26

30

30

34

38

40

48

Min. power output (kW)

60

70

80

90

110

115

125

150

150

160

Weight*

1290

1350

1450

1525

1700

2410

2620

2745

4000

4200

Working width (cm)

200

250

300

350

400

400

450

500

500

600

Transport width (mm)

200

2500

3000

3500

4000

2900

2900

2900

2500

2500

Max. working depth (cm)

12

12

12

12

12

12

12

12

12

12

Tire size

-

-

-

-

-

-

-

19/45-17

19/45-17

Rollers

Tubular roller

ø 540 mm

standard type of roller

standard crumbling effect

Spiral roller

ø 540 mm

suitable for all soil types

good levelling effect

Cracker roller

ø 540 mm

suitable for all soil types without stones

perfect crumbling effect

Spring roller

ø 530 mm

suitable for all soil types

low stickiness in wet conditions

DDL roller

ø 560 mm

suitable for all soil types

perfect cutting and crumbling effect

perfect packing effect

Discs

Disc 510 mm Standard

standard type

mounted by 4 bolts

thickness 5 mm

Disc 510 mm Labrador

perfect cutting effect

mounted by 4 bolts

thickness 5 mm

Other accessories

Support wheels

tire size 10/75-15,3

better and straighter lead of machine

better stability

lower strain of frame



Not available
